400G OSFP to 400G OSFP AEC

LGOO-PM1xxxC

Max Reach: 7 meters

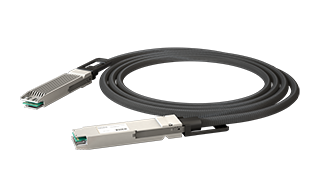

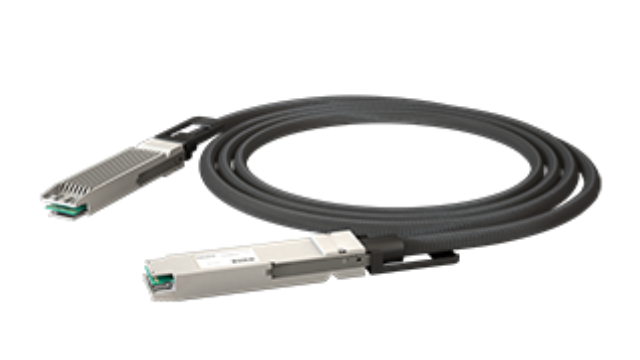

Image of LGOO-PM1xxxC

Key Features

4x106.25G PAM4
InfiniBand NDR & Ethernet compatible
Maximum link length up to 7m
Single Wire Size: 26AWG~32AWG
Maximum power consumption: 6.5W each end
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
RoHS Compliance

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

OSFP MSA
CMIS 4.0
IEEE 802.3ck

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LGOO-PM1070C	400G OSFP to 400G OSFP AEC	1:1	7m	400Gb	OSFP	400Gb	OSFP	26 AWG	C
	LGOO-PM1050C	400G OSFP to 400G OSFP AEC	1:1	5m	400Gb	OSFP	400Gb	OSFP	30 AWG	C	-
	LGOO-PM1030C	400G OSFP to 400G OSFP AEC	1:1	-	400Gb	OSFP	400Gb	OSFP	32 AWG	C	-
