800G OSFP to 2x400G OSFP RHS AEC

LGOO-QM2xxxC

Max Reach: 7 meters

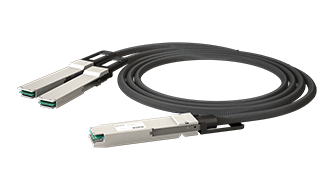

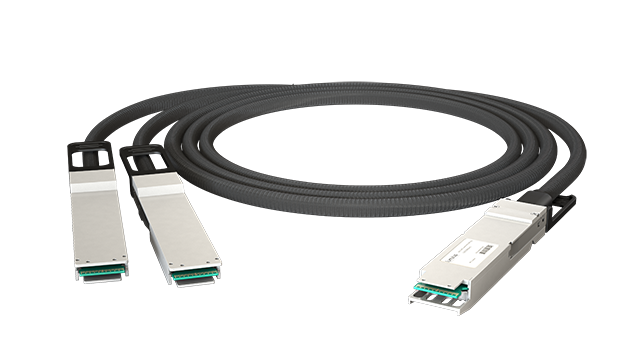

Image of LGOO-QM2xxxC

Key Features

Support 8x106.25G PAM4
InfiniBand NDR & Ethernet compatible
Maximum link length up to 7m
Single Wire Size: 26AWG~32AWG
Maximum power consumption: 12W(800G end), 6.5W(400G end)
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
RoHS Compliance

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

OSFP MSA
CMIS 4.0
IEEE 802.3ck

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LGOO-QM2070C	800G OSFP to 2X400G OSFP RHS AEC	1:2	7m	800Gb	OSFP	400Gb	OSFP	26 AWG	C
	LGOO-QM2050C	800G OSFP to 2X400G OSFP RHS AEC	1:2	5m	800Gb	OSFP	400Gb	OSFP	30 AWG	C	-
	LGOO-QM2030C	800G OSFP to 2X400G OSFP RHS AEC	1:2	3m	800Gb	OSFP	400Gb	OSFP	32 AWG	C	-
	LGOO-QM2xxxC	-	-	-	800Gb	OSFP	-	-	-	C	-

High-Speed Cable Solutions

DAC cables are high-speed, cost-effective cables that are easy to install and ideal for short-distance direct connections in data centers.

ACC cables are high-speed, cost-effective cables with active amplification that support high-speed connections over longer distances than DACs which are perfect for low-latency environments.

AEC cables combine copper flexibility with active circuits, optimizing connections over extended distances in confined spaces.

AOC cables are high-speed active optical cables that are ideal for long-distance data communications, ensuring low latency and resistance to interference.
