DSFP56 100G to DSFP56 100G ACC
LFDD-MK1xxxC
Max Reach: 5 meters

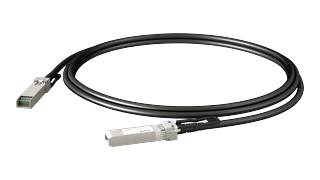

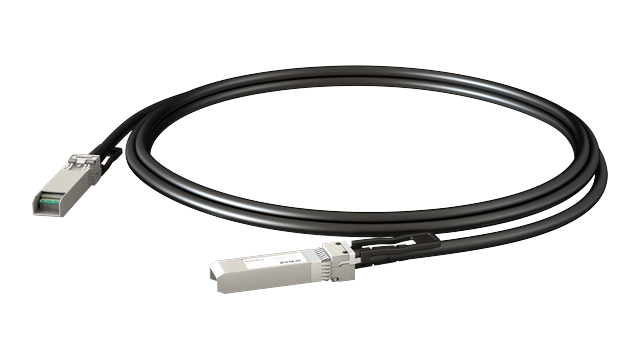

The LFDD-MK1xxxC, DSFP56 to DSFP56 100G Active Copper Cable Assembly, meticulously designed for application in the telecommunications and data center sectors. It facilitates bidirectional transmission of 100Gb traffic per cable, accommodating 2 lanes of 50G PAM4. The cable adheres to the standardized DSFP and NGSFP form factor and complies rigorously with MultiSource Agreement (MSA) specifications.
Key Features
- Support 53.125G PAM4
- 100G to 100G Data Rate
- 3.3V Power Supply
- Hot Pluggable
- BER < 10-6 (pre FEC)
- BER < 10-15 (post FEC)
- Excellent SI performance
- RoHS Compliance
Applications
- Data center & Networking Equipment
- Servers/Storage Devices
- High Performance Computing (HPC)
- Switches/Routers
- Telecom Central Offices
Supported Standards
- DSFP/NGSFP MSA
- IEEE 802.3cd
- IEEE 802.3by
- I2C for EEPROM
- CMIS 5.0 and SFF-8636
Product specification
