QSFP-DD PCIe 5.0 DAC

L1GG-221xxxC

Max Reach: 2 meters

The QSFP-DD PCIe Direct Attach Cable product is an 8-channel parallel copper direct attach cable for storage, data center, and high-performance computing connectivity. It offers 8 independent data transmission channels and 8 data receiving channels via the copper cable; an aggregate data rate of 800 Gbps over 2.0 meters of transmission can be achieved with this product.

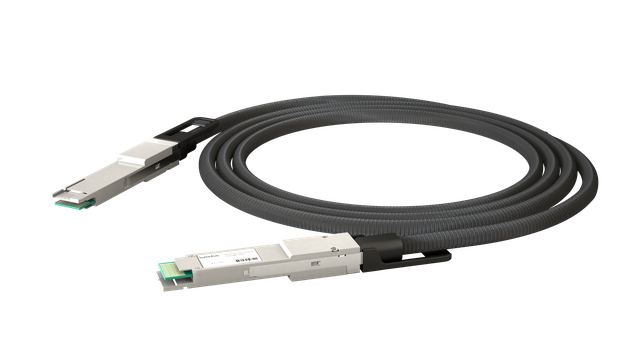

Image of L1GG-221xxxC

Key Features

Supports 8x32GT/s NRZ PCIe Gen5
QSFP-DD x8 to QSFP-DD x8 copper cable assembly
Single Wire Size: 28AWG
Maximum link length up to 2m
Maximum power consumption:<0.05W each end
Operating temperature: 0°C to +70°C
3.3V Power Supply
Hot Pluggable
RoHS & Reach Compliance

Applications

Gen5 x8 PCIe

Supported Standards

QSFP-DD MSA
PCI Express CEM Specification 5.0

Product specification

	P/N	Description	Max Reach	AWG	Temp. Range	Specification sheet
	L1GG-221020C	QSFP-DD x8 to QSFP-DD x8 PCIe 5.0 DAC	2m	28 AWG	C
