200G QSFP56 to 200G QSFP56 AEC

LGQQ-NK1xxxC

Max Reach: 10 meters

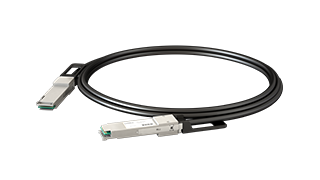

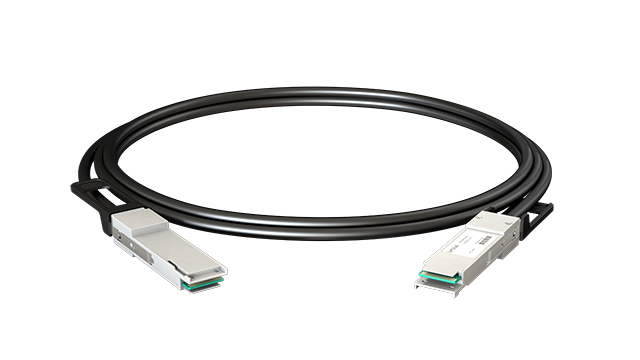

Image of LGQQ-NK1xxxC

Key Features

Support 4x53.125G PAM4
InfiniBand HDR & Ethernet compatible
Maximum link length up to 10m
Single Wire Size: 28AWG~32AWG
Maximum power consumption: 3.5W each end
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
RoHS Compliance

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

QSFP MSA
SFF-8636
IEEE 802.3cd

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LGQQ-NK1100C	200G QSFP56 to 200G QSFP56 AEC	1:1	10m	200Gb	QSFP56	200Gb	QSFP56	28 AWG	C
	LGQQ-NK1070C	200G QSFP56 to 200G QSFP56 AEC	1:1	7m	200Gb	QSFP56	200Gb	QSFP56	30 AWG	C	-
	LGQQ-NK1060C	200G QSFP56 to 200G QSFP56 AEC	1:1	6m	200Gb	QSFP56	200Gb	QSFP56	32 AWG	C	-

High-Speed Cable Solutions

DAC cables are high-speed, cost-effective cables that are easy to install and ideal for short-distance direct connections in data centers.

ACC cables are high-speed, cost-effective cables with active amplification that support high-speed connections over longer distances than DACs which are perfect for low-latency environments.

AEC cables combine copper flexibility with active circuits, optimizing connections over extended distances in confined spaces.

AOC cables are high-speed active optical cables that are ideal for long-distance data communications, ensuring low latency and resistance to interference.
