800G OSFP DAC

LEOO-QM1XXXC

Max Reach: 2 meters

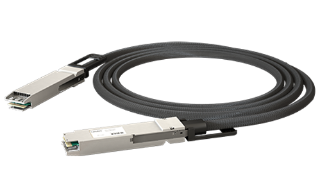

Image of LEOO-QM1XXXC

Key Features

Compatible with IEEE 802.3ck
Supports aggregate data rates of 800Gbps(PAM4)
Optimized construction to minimize insertion loss and crosstalk
Pull-to-release slide latch design
Straight and break out assembly configurations available
Customized cable braid termination limits EMI radiation
Customizable EEPROM mapping for cable signature
30AWG through 26AWG cable, uses 16 pairs of cables for
overall softness
3.3V Power supply
Temperature Range: 0~ 70 °C
RoHs Compliant

Applications

Switches, servers and routers
Data Center networks
Storage area networks
High performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment

Supported Standards

800G Ethernet(IEEE 802.3ck)
InfiniBand NDR

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LEOO-QM1020C	800G OSFP to 800G OSFP Closed Top DAC	1:1	2m	800Gb	OSFP	800Gb	OSFP	26 AWG	C
	LEOO-QM1015C	800G OSFP to 800G OSFP Closed Top DAC	1:1	1.5m	800Gb	OSFP	800Gb	OSFP	28 AWG	C	-
	LEOO-QM1010C	800G OSFP to 800G OSFP Closed Top DAC	1:1	1m	800Gb	OSFP	800Gb	OSFP	30 AWG	C	-
