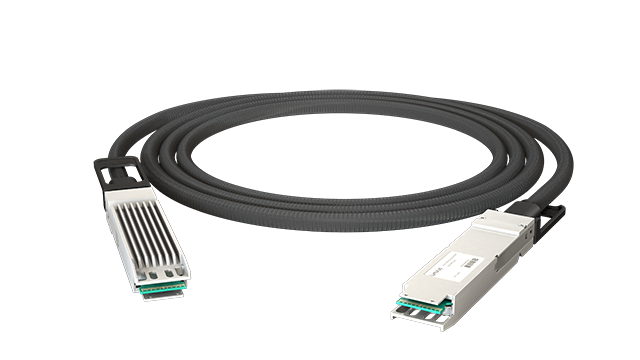

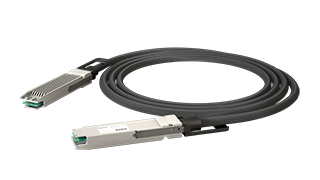

400G OSFP56 to 400G OSFP56 AEC

LGOO-PK1xxxC

Max Reach: 10 meters

The 400G OSFP56 to OSFP56 Active Electrical Cable (AEC) supports 8×53.125G PAM4 lanes, delivering an aggregate 400G bandwidth with superior signal integrity.

Fully compatible with InfiniBand HDR and Ethernet, it ensures reliable high-speed connectivity in demanding data center and AI/Cloud environments.

Key Features

Support 8x53.125G PAM4
InfiniBand HDR & Ethernet compatible
Maximum link length up to 10m
Single Wire Size: 26AWG~32AWG
Maximum power consumption: 6.5W each end
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
RoHS Compliance

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

OSFP MSA
CMIS 4.0
IEEE 802.3cd

Product specification

P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
LGOO-PK1100C	400G OSFP56 to 400G OSFP56 AEC	1:1	10m	400Gb	OSFP	400Gb	OSFP	28 AWG	C	-
LGOO-PK1070C	400G OSFP56 to 400G OSFP56 AEC	1:1	7m	400Gb	OSFP	400Gb	OSFP	30 AWG	C	-
LGOO-PK1060C	400G OSFP56 to 400G OSFP56 AEC	1:1	6m	400Gb	OSFP	400Gb	OSFP	32 AWG	C	-
