400G QSFP-DD AOC

LAGG-PK1xxxC

Max Reach: 100 meters

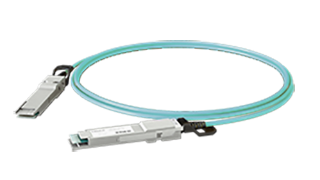

Image of LAGG-PK1xxxC

Key Features

Hot-pluggable QSFP-DD form factor
Case temperature range of 0℃to +70℃
Maximum link length of 100m on OM4 fiber with FEC
+3.3V single power supply
8W power dissipation each end, with CDR
Operating case temp
Commercial: 0°C to +70 °C
RoHS compliant

Applications

400GAUI-8
Other 400G optical links

Supported Standards

8x50G PAM4 retimed 400GAUI-8
electrical interface aligned with IEEE
802.3bs

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	Fiber Type	Temp. Range	Specification sheet
	LAGG-PK1X10C	400G QSFP-DD to 400G QSFP-DD AOC	1:1	100m	400Gb	QSFP-DD	400Gb	QSFP-DD	LSZH MMF	C

High-Speed Cable Solutions

DAC cables are high-speed, cost-effective cables that are easy to install and ideal for short-distance direct connections in data centers.

ACC cables are high-speed, cost-effective cables with active amplification that support high-speed connections over longer distances than DACs which are perfect for low-latency environments.

AEC cables combine copper flexibility with active circuits, optimizing connections over extended distances in confined spaces.

AOC cables are high-speed active optical cables that are ideal for long-distance data communications, ensuring low latency and resistance to interference.
