400G QSFP-DD to 2x200G QSFP56 AEC

LGGQ-PK2xxxC

Max Reach: 10 meters

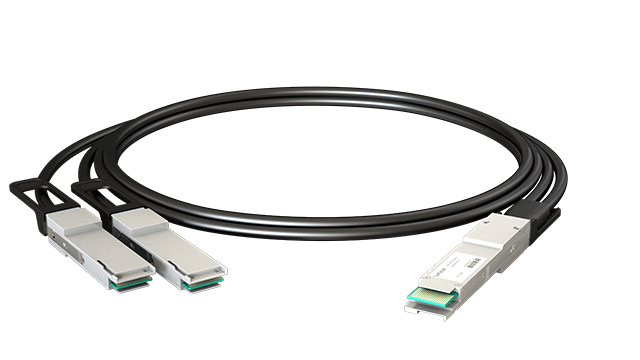

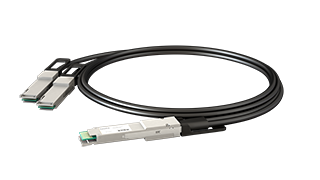

Image of LGGQ-PK2xxxC

Key Features

Support 8x53.125G PAM4
InfiniBand HDR & Ethernet compatible
Maximum link length up to 10m
Single Wire Size: 28AWG~32AWG
Maximum power consumption:6.5W(400G end), 3.5W (200G end)
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
RoHS Compliance

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

QSFP-DD MSA/QSFP MSA
CMIS 4.0/SFF-8636
IEEE 802.3cd

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LGGQ-PK2100C	400G QSFP-DD to 2x200G QSFP56 AEC	1:2	10m	400Gb	QSFP-DD	200Gb	QSFP56	28 AWG	C
	LGGQ-PK2070C	400G QSFP-DD to 2x200G QSFP56 AEC	1:2	7m	400Gb	QSFP-DD	200Gb	QSFP56	30 AWG	C	-
	LGGQ-PK2060C	400G QSFP-DD to 2x200G QSFP56 AEC	1:2	-	400Gb	QSFP-DD	-	QSFP56	32 AWG	C	-
