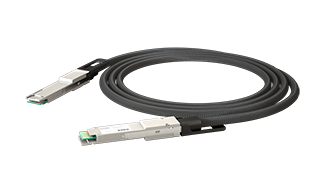

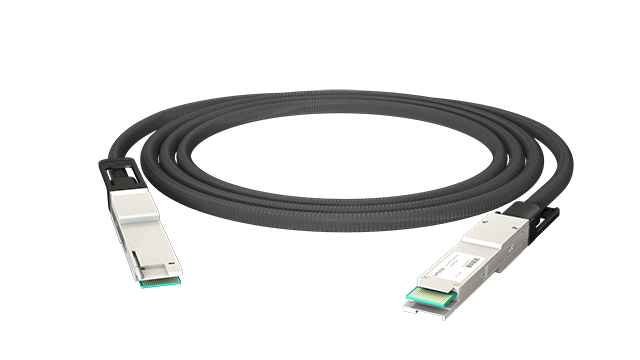

400G QSFP56-DD to 400G QSFP56-DD AEC

LGGG-PK1xxxC

Max Reach: 10 meters

The 400G QSFP56-DD to QSFP56-DD AEC delivers high-speed connectivity with 8×50G electrical lanes, integrating active signal conditioning to extend reach while maintaining low power and superior signal integrity — the ideal choice for data centers, AI, and cloud infrastructure.

Key Features

Support 8x53.125G PAM4
InfiniBand HDR & Ethernet compatible
Maximum link length up to 10m
Single Wire Size: 28AWG~32AWG
Maximum power consumption: 6.5W each end
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
RoHS Compliance

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

QSFP-DD MSA
CMIS 4.0
IEEE 802.3cd

Product specification

P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
LGGG-PK1100C	400G QSFP56-DD to 400G QSFP56-DD AEC	1:1	10m	400Gb	QSFP-DD	400Gb	QSFP-DD	28 AWG	C
LGGG-PK1070C	400G QSFP56-DD to 400G QSFP56-DD AEC	1:1	7m	400Gb	QSFP-DD	400Gb	QSFP-DD	30 AWG	C	-
LGGG-PK1060C	400G QSFP56-DD to 400G QSFP56-DD AEC	1:1	-	400Gb	QSFP-DD	400Gb	QSFP-DD	32 AWG	C	-
