25Gbps SFP28 1310nm LR
LIPX-UULxxxC
Max Reach: 10000 meters

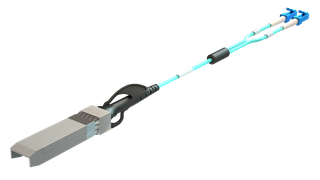

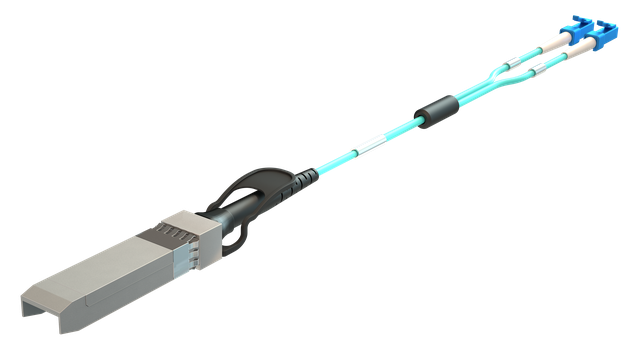

The Lumulus Immersion SFP28 transceiver is a single-channel, pluggable fiber optic module designed for 25 Gigabit Ethernet and CPRI Option 10 applications. Engineered specifically for reliable operation in liquid immersion environments, it delivers high performance for data communication and interconnect applications at data rates up to 25.78125 Gbps over distances of up to 10 km. The module operates over single-mode fiber using a nominal wavelength of 1310 nm and features a standard 20-contact edge connector electrical interface. An optional pigtail optical interface is also available to support specific deployment requirements.
Designed with high-quality components and proven engineering, the module provides long-term reliability, consistent performance, and dependable operation in demanding data center environments.
Key Features
- Hot-pluggable SFP28 form factor
- Supports 25Gbps data rate
- Maximum link length of 10km
- Uncooled 1310nm DML transmitter and PIN receiver
- Internal CDR on both Transmitter and Receiver channel
- Optional pigtail type and length
- Single 3.3V power supply
- Power dissipation < 1.5 W
- Operating case temperature range: 0°C to 60°C
Applications
- 25GBASE-LR Ethernet
- CPRI Option 10
- Support 10G CPRI option 8 by CDR bypass
- Especially design for liquid immersion environment
Supported Standards
- Compliant with SFF-8472 & 8431
- RoHS compliant (2011/65/EU, lead-free)
